Lineman Tools Battery Crimping Tool With Cutting Crimping Punching Die
Battery Crimping Tool
Micro computer control system-automatically detects the pressure when in crimping with double safety protect.
The tool is equipped with a double piston pump which characterized with a fast approach towards the connecting material and transfer to high pressure automatically by slow crimping.
If a deviation from the set operation pressure or low battery charges is identified, an acoustic signal sounds and a red display flashes.
One key control-press the trigger to start working, half loosing the trigger means stop forcing pressure, loosing fully means piston return to the original position.
A Temperature sensor makes the tool stop working automatically when the temperature over 60℃ under long time working, the fault signal sounds, it means the tool can’t continue work until the temperature reduced to the normal.
Technical Data
| Model | EC-60UNV |
| Crimping force | 60KN |
| Stroke | 42mm |
| Crimping range | 16-300mm2 |
| Cutting range | 40mm Cu/Al cable and armoured cable |
| Punching range | 22.5-61.5 |
| Crimp/charge | 160times |
| Working cycle | 3-16s |
| Voltage | 18V |
| Capacity | 3.0Ah |
| Charging time | 45minutes |
| Package | Plastic case |
| Crimping die | 16.25.35.50.70.95.120.150.185.240.300mm2 |
| Punching & Die | 22.5,28.3,34.6,43.2,49.6,61.5mm |
| Blade | 1set |
| Adapter for crimping | 1pc |
| Adapter for punching | 1pc |
| 3/4" Draw stud/7/16"Draw stud | 1pc |
| Spacer | 1pc |
| Battery | 2pcs |
| Charger | 1pc(AC110-240V,50-60Hz) |
| Sealing ring of cylinder | 1set |
| Sealing ring of safety valve | 1set |

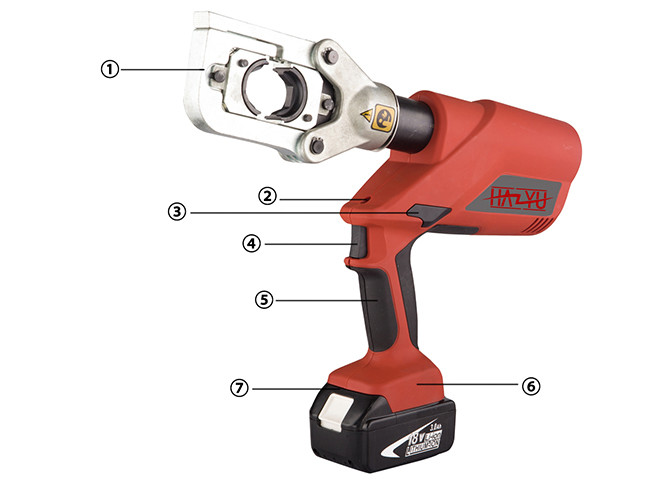

Battery Multi-Functional Tool
① Head rotates 350°
② LED Light
③ A manual Retraction Button
④ All tools can be controlled by one trigger
⑤ Ergonomic design for one hand operation
⑥ Micro computer control system-automatically detect the pressure
⑦ Li-ion lower power weight ratio with 50% more capacity and shorter charging cycles
